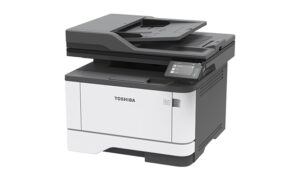

Toshiba e‑STUDIO409AS Multifunction Network Printer
Print, Copy, Scan (Optional Fax)
The Toshiba e‑STUDIO409AS is a compact A4 monochrome multifunction printer built for efficiency and security in small to medium-sized businesses.
Printing at up to 40 ppm, it features advanced security including a Trusted Platform Module (TPM), mobile and cloud printing support, and seamless integration into existing IT environments—making it an ideal choice for modern, space-conscious workgroups.
Toshiba e-STUDIO2510AC Multifunction Network Printer
Print, Copy, Scan, (Optional Fax)
Overview
The Toshiba e-STUDIO2510AC is more than just a printer—it’s a smart, customizable A3 colour MFP designed for small to medium businesses. Powered by Toshiba’s e-BRIDGE Next controller, it supports seamless mobile and cloud printing, and integrates easily with your existing IT systems.
With Toshiba’s exclusive e-BRIDGE Print & Capture app, you can scan documents directly to smartphones or tablets. Google Cloud Print allows secure printing over the web from anywhere, anytime. The 10.1″ tablet-style touch panel makes it easy to customize your workflows using icons for each function.
General Specification
Print & Copy Speed: 25 ppm (A4), 12 ppm (A3)
Warm-up Time: Approx. 13 seconds from low power mode
Paper Size & Weight:
Cassette: A5R–A3, 60–163 gsm
Bypass: 100 × 148 mm–A3, 60–209 gsm
Paper Capacity: 1×250-sheet Cassette, 1×100-sheet Bypass, Max 2,900 sheets
Output Tray: 550-sheet inner tray
Duplex: Auto duplex for A5R–A3, 60–163 gsm
Controller: Toshiba e-BRIDGE Next
Touch Panel: 26 cm (10.1″) Multi-Touch Colour Panel
Memory: 2 GB RAM standard, max 4 GB; 320 GB Toshiba Secure HDD
Interfaces:
Ethernet 10/100/1000 Base-T
High Speed USB 2.0
Optional: WLAN (802.11b/g/n), Bluetooth, Wi-Fi Direct
Dimensions (W×D×H): 575 × 586 × 662 mm
Weight: 57 kg
Print Specification
Resolution:
600 × 600 dpi (5-bit),
600 × 1,200 dpi (PostScript driver only)
Languages: PCL5e, PCL5c, PCL6, XPS, PDF, PostScript 3
OS Support:
Windows 7/8.1/10, Windows Server 2008–2016, macOS 10.6.8–10.13, Linux/Unix, Citrix, Novell, SAP, AS/400
Colour Modes: Auto Colour, Colour, Twin Colour, Monochrome
Settings: ICC profiles, RGB substitution, Brightness, Saturation, Colour Balance
Functions:
Universal Driver, Driver Templates, Print from USB, Hold Print, Tandem Printing, Email Print
Mobile: AirPrint, Mopria, Google Cloud Print, e-BRIDGE Print & Capture
Scan Specification
Max Resolution: 600 × 600 dpi
Speed: Up to 73 ipm (300 dpi, colour & mono via RADF)
Modes: Auto Colour, Colour, Greyscale, Monochrome
Formats: JPEG, TIFF, XPS, PDF (incl. Secure, Slim, PDF/A), Searchable PDF, DOCX, XLSX
Functions:
WS Scan, Scan to USB, Email, SMB, FTP, FTPS, Meta Scan, OCR, e-Filing, WIA, TWAIN
Copy Specification
Scan Resolution: 600 × 600 dpi
Print Resolution:
600 × 600 dpi (5-bit), equivalent to 2,400 × 600 dpi with smoothing (mono)
First Copy Time:
Colour: ~9.5 sec
Mono: ~7.1 sec
Zoom:
25–400% (Platen)
25–200% (RADF)
Modes: Text, Text/Photo, Photo, Printed Image, Map
Colour Modes: Auto, Full Colour, Twin Colour, Mono Colour, Monochrome
Settings: Hue, Saturation, RGB adjust, 5 one-touch modes
Functions: Sort, Rotate Sort, ID Copy, Edge Erase, 2-in-1/4-in-1
Optional Fax Specification
Comms: Super G3, G3, 2nd line, Internet Fax
Speed: ~3 seconds/page
Compression: JBIG, MMR, MR, MH
Memory: 1 GB (Tx/Rx)
Network Fax Support: Windows 7–10, Server 2008–2016
Routing: SMB, FTP, Email, e-Filing
System & Security
Management: Remote via TopAccess
Features:
e-Filing (1 public box, 200 user boxes)
12,060 one-touch templates
Rip-while-print, Scan/Fax preview
Embedded browser, Barcode printing
Apps: e-BRIDGE Plus embedded apps
Accounting & Security:
LDAP, Role-Based Access
1,000 dept & 10,000 user codes
Card Reader (opt.), Private Print
Data encryption, Data Overwrite
IP/MAC filtering, SSL, IPsec, 802.1x
CC Certified (ISO/IEC15408, HCD-PP v1.02)
Secure PDF, Pull Printing
